Click Image for Gallery
General
Seat Height
610mm
Bore x Stroke
39mm x 41.4mm
Front Suspension
Normal front shock absorber
Rear Suspension
Normal front shock absorber
Displacement
50cc
Exhaust
Steel exhaust pipe
Wheelbase
1015mm
Handlebar
Steel handlebar
Swingarm
Steel Swingarm
Fuel Capacity
4L
Wheel
Steel wheels, Front 10°, Rear 10°
Quad Dirt Bike Parts
Fairings
CRF50 style
Ignition Mode
CDI
Technical
Engine Type
50cc air cooled, single cylinder, 4 stroke kick start
Starting Mode
Kick Start, Electric Start
Transmission
Semi-automatic
Front Brake
Drum Brake
Rear Brake
Drum Brake
Maximum Power
2.4KW/7500R/MIN
Maximum Torque
2.75NM5000R/MIN
Rider
Maximum Load
100kg
Rider Capacity
1 Person
Product Size
1300mm x 600mm x 800mm (LxWxH)
Important Safety & Product Information
Always wear a helmet, product clothing and gear such as goggles, long sleeves, long pants, boots and gloves/hand protection when riding these products. For motorised products a motorbike standard helmet needs to be worn. Never let children ride dirt bikes that are meant for adults, even as passengers. Do not carry any passengers on dirt bikes that are meant for one person. Dirt bikes are not all-terrain vehicles so they cannot go safely on all types of terrain. Avoid riding on rough terrain or steep slopes. Ride on familiar tracks and beware of obstacles. Never ride under the influence of alcohol/drugs. Ensure children are supervised at all times near any dirt bike activity. Always carry a mobile phone or radio device so you can contact help in case of an emergency. Always adhere to the maximum load of the product. Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. For the first tank, run in the engine, please do not over-rev the engine for the first 1-3 months as the engine is new and should be treated as such. This item is intended for off road use only.
Packaging
Packaging Dimensions
1350mm x 380mm x 650mm (LxWxH)
General | |
Seat Height | 610mm |
Bore x Stroke | 39mm x 41.4mm |
Front Suspension | Normal front shock absorber |
Rear Suspension | Normal front shock absorber |
Displacement | 50cc |
Exhaust | Steel exhaust pipe |
Wheelbase | 1015mm |
Handlebar | Steel handlebar |
Swingarm | Steel Swingarm |
Fuel Capacity | 4L |
Wheel | Steel wheels, Front 10°, Rear 10° |
Quad Dirt Bike Parts | |
Fairings | CRF50 style |
Ignition Mode | CDI |
Technical | |
Engine Type | 50cc air cooled, single cylinder, 4 stroke kick start |
Starting Mode | Kick Start, Electric Start |
Transmission | Semi-automatic |
Front Brake | Drum Brake |
Rear Brake | Drum Brake |
Maximum Power | 2.4KW/7500R/MIN |
Maximum Torque | 2.75NM5000R/MIN |
Rider | |
Maximum Load | 100kg |
Rider Capacity | 1 Person |
Product Size | 1300mm x 600mm x 800mm (LxWxH) |
Important Safety & Product Information | Always wear a helmet, product clothing and gear such as goggles, long sleeves, long pants, boots and gloves/hand protection when riding these products. For motorised products a motorbike standard helmet needs to be worn. Never let children ride dirt bikes that are meant for adults, even as passengers. Do not carry any passengers on dirt bikes that are meant for one person. Dirt bikes are not all-terrain vehicles so they cannot go safely on all types of terrain. Avoid riding on rough terrain or steep slopes. Ride on familiar tracks and beware of obstacles. Never ride under the influence of alcohol/drugs. Ensure children are supervised at all times near any dirt bike activity. Always carry a mobile phone or radio device so you can contact help in case of an emergency. Always adhere to the maximum load of the product. Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. For the first tank, run in the engine, please do not over-rev the engine for the first 1-3 months as the engine is new and should be treated as such. This item is intended for off road use only. |
Packaging | |
Packaging Dimensions | 1350mm x 380mm x 650mm (LxWxH) |

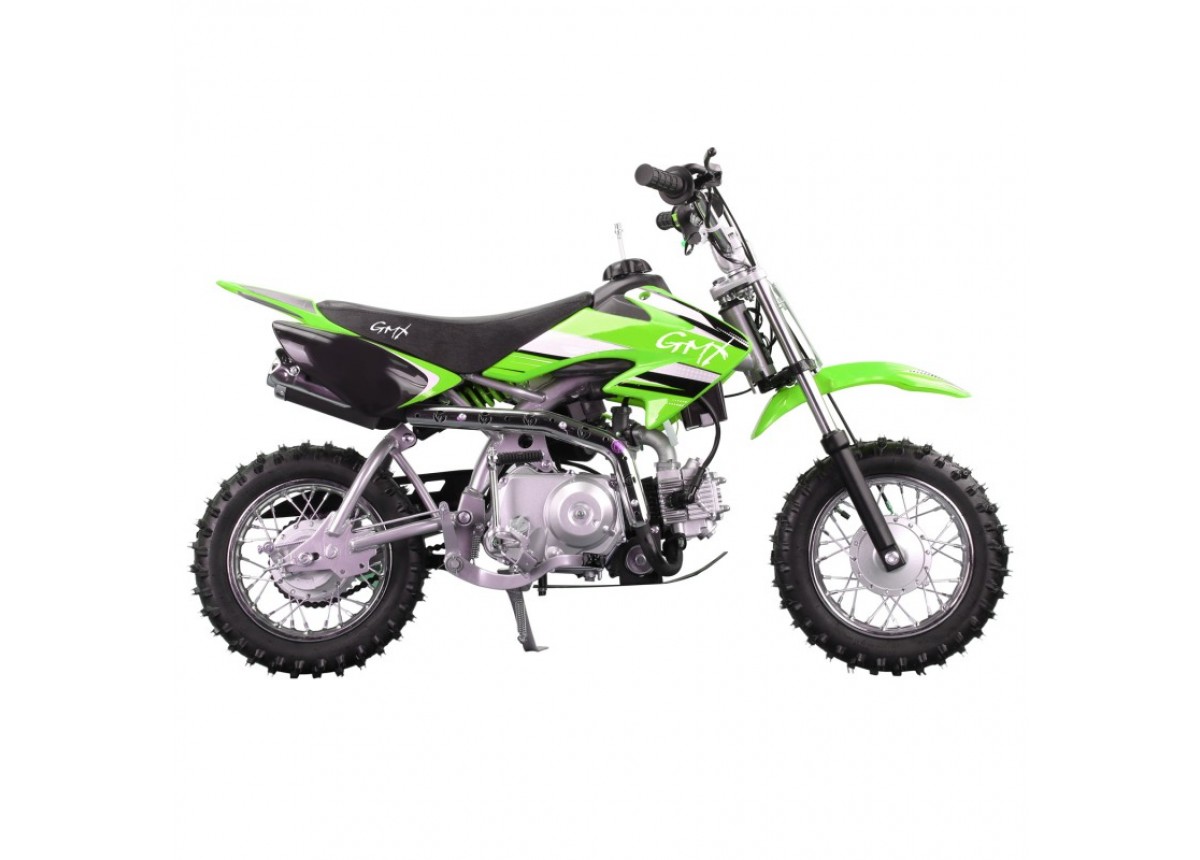

GMX Moto50 50cc Dirt Bike Green
Features:
- Engine: 50cc air cooled, single cylinder, 4 stroke kick start
- Max Power: 2.4KW/7500R/MIN
- Max Torque: 2.75NM5000R/MIN
- Transmission: Semi-automatic, 4 speed 420# chain
- Frame: Heavy duty chrome steel tube strengthen frame
- Handlebar: Steel handlebar
- Body Fairing: CRF50 style
- Suspension: Normal front and rear shock absorber
- Brake system: Front and rear drum brake
