Click Image for Gallery
General
Maximum Speed
60km/hr (depending terrain surface)
Seat Height
570 mm
Bore x Stroke
52.4 mm x 49.5 mm
Compression Ratio
9.1 : 1
Front Tyre
Blaze Type 145/70-6(6 inch)
Rear Tyre
Blaze Type 145/70-6(6 inch)
Tyre Pressure
68.0 ± 0.2 kpa
Wheelbase
855mm
Handlebar
High Bend Mini Bar
Handlebar Grips
Soft High Grip Rubber
Magneto Type
Electronic Ignition System
Ground Clearance
80 mm
Swingarm
Steel
Fuel Capacity
2.4 L
Triple Clamps
Steel
Engine Oil Grade
Non Synthetic 15W/40-SE - 4 Stroke Engine Oil
Optimal Engine Oil Level
800 ML
Intake / Exhaust
Race Pipe + Performance Steel Muffler
Charger
Included
Assembly
Products are up to 90% assembled. Minor assembly is required and in the interested of safety it is recommended that you have the quad bike assembled by a qualified, skilled small engine mechanic.
Additional Information
Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. For the first tank, run in the engine, please do not over-rev the engine for the first 1-3 months as the engine is new and should be treated as such. This item is intended for off road use only.
Technical
Engine Model
152 FMH/ 110 cc GMX Series 1 Engine
Engine Type
4 Stroke - Single Cylinder - Air Cooled
Starting Mode
Electric Start
Ignition Type
CDI
Chain
428#76
Clutch Type
Heavy Duty Wet Multi Plate
Cylinder ratio
107 ML
Transmission
Automatic
Fuel
Regular Unleaded (92 or higher)
Fuel Delivery System
PZ19 Carburetor
Drive
428 # 76 Chain
Front Brake
Front Drum Brakes
Rear Brake
Rear Hydraulic Disc Brakes
Gearing
14 Tooth Front / 37 Tooth Rear
Idle Speed
≤800 ppm
Maximum Output
KW / HP : 8HP
Maximum Power
5.5 Kw/8000 (r/min)
Maximum Torque
7.2 N.m/ 5500 (r/min)
Rated Loading Capacity
90 Kgs
Rider
Rider Capacity
1 Person
Product Size
1190 x 760 x 820 mm
Important Safety & Product Information
Always wear a helmet, product clothing and gear such as goggles, long sleeves, long pants, boots and gloves/hand protection when riding these products. For motorised products a motorbike standard helmet needs to be worn. Never let children ride quad bikes that are meant for adults, even as passengers. Do not carry any passengers on quad bikes that are meant for one person. Quad bikes are not all-terrain vehicles so they cannot go safely on all types of terrain. Avoid riding on rough terrain or steep slopes. Ride on familiar tracks and beware of obstacles. Never ride under the influence of alcohol/drugs. Ensure children are supervised at all times near any quad bike activity. Always carry a mobile phone or radio device so you can contact help in case of an emergency. Always adhere to the maximum load of the product. Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. For the first tank, run in the engine, please do not over-rev the engine for the first 1-3 months as the engine is new and should be treated as such. This item is intended for off road use only.
Packaging
Product Weight
65kg
Gross Weight
83kg
Packaging Dimensions
1140 x670 x640 mm
| General | |
| Maximum Speed | 60km/hr (depending terrain surface) |
| Seat Height | 570 mm |
| Bore x Stroke | 52.4 mm x 49.5 mm |
| Compression Ratio | 9.1 : 1 |
| Front Tyre | Blaze Type 145/70-6(6 inch) |
| Rear Tyre | Blaze Type 145/70-6(6 inch) |
| Tyre Pressure | 68.0 ± 0.2 kpa |
| Wheelbase | 855mm |
| Handlebar | High Bend Mini Bar |
| Handlebar Grips | Soft High Grip Rubber |
| Magneto Type | Electronic Ignition System |
| Ground Clearance | 80 mm |
| Swingarm | Steel |
| Fuel Capacity | 2.4 L |
| Triple Clamps | Steel |
| Engine Oil Grade | Non Synthetic 15W/40-SE - 4 Stroke Engine Oil |
| Optimal Engine Oil Level | 800 ML |
| Intake / Exhaust | Race Pipe + Performance Steel Muffler |
| Charger | Included |
| Assembly | Products are up to 90% assembled. Minor assembly is required and in the interested of safety it is recommended that you have the quad bike assembled by a qualified, skilled small engine mechanic. |
| Additional Information | Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. For the first tank, run in the engine, please do not over-rev the engine for the first 1-3 months as the engine is new and should be treated as such. This item is intended for off road use only. |
| Technical | |
| Engine Model | 152 FMH/ 110 cc GMX Series 1 Engine |
| Engine Type | 4 Stroke - Single Cylinder - Air Cooled |
| Starting Mode | Electric Start |
| Ignition Type | CDI |
| Chain | 428#76 |
| Clutch Type | Heavy Duty Wet Multi Plate |
| Cylinder ratio | 107 ML |
| Transmission | Automatic |
| Fuel | Regular Unleaded (92 or higher) |
| Fuel Delivery System | PZ19 Carburetor |
| Drive | 428 # 76 Chain |
| Front Brake | Front Drum Brakes |
| Rear Brake | Rear Hydraulic Disc Brakes |
| Gearing | 14 Tooth Front / 37 Tooth Rear |
| Idle Speed | ≤800 ppm |
| Maximum Output | KW / HP : 8HP |
| Maximum Power | 5.5 Kw/8000 (r/min) |
| Maximum Torque | 7.2 N.m/ 5500 (r/min) |
| Rated Loading Capacity | 90 Kgs |
| Rider | |
| Rider Capacity | 1 Person |
| Product Size | 1190 x 760 x 820 mm |
| Important Safety & Product Information | Always wear a helmet, product clothing and gear such as goggles, long sleeves, long pants, boots and gloves/hand protection when riding these products. For motorised products a motorbike standard helmet needs to be worn. Never let children ride quad bikes that are meant for adults, even as passengers. Do not carry any passengers on quad bikes that are meant for one person. Quad bikes are not all-terrain vehicles so they cannot go safely on all types of terrain. Avoid riding on rough terrain or steep slopes. Ride on familiar tracks and beware of obstacles. Never ride under the influence of alcohol/drugs. Ensure children are supervised at all times near any quad bike activity. Always carry a mobile phone or radio device so you can contact help in case of an emergency. Always adhere to the maximum load of the product. Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. For the first tank, run in the engine, please do not over-rev the engine for the first 1-3 months as the engine is new and should be treated as such. This item is intended for off road use only. |
| Packaging | |
| Product Weight | 65kg |
| Gross Weight | 83kg |
| Packaging Dimensions | 1140 x670 x640 mm |
The GMX 110cc RIPPER X is one of our best selling models that suits young beginners or experienced riders. It can handle that extra power and speed from its 4 stroke engine, electric start and automatic transmission.
It comes with these standard safety features - a physical kill switch, a dead-man switch and the rider's legs and feet are enclosed in full floorboards. For extra safety the speed of this quad can be limited down and released again once the rider gains more confidence and can handle higher speeds.
GMX Quad bikes are stronger than other comparable brands in the market due to the uniquely made frame which is built thicker to last longer.
FEATURES
| Physical Kill Switch | The physical kill switch is a switch you flick if you want the motor to cut out, it is generally located on the left side of the handle bar |
| Dead Man Switch | The dead man switch clips onto the rider so if the rider comes off the bike the motor cuts out, it is located behind the seat |
| Speed Limiter | A screw on the handle bar allows you to limit the speed the quad bike reaches. This may be released as the rider gains more confidence and wants to reach higher speeds |
| Heavy Duty Frame | Quad bike frames are all about the thickness of the tubing the frame is constructed from. GMX quad bikes are uniquely made so they have thicker walls within the frame tubing making the whole frame stronger, more durable and longer lasting |

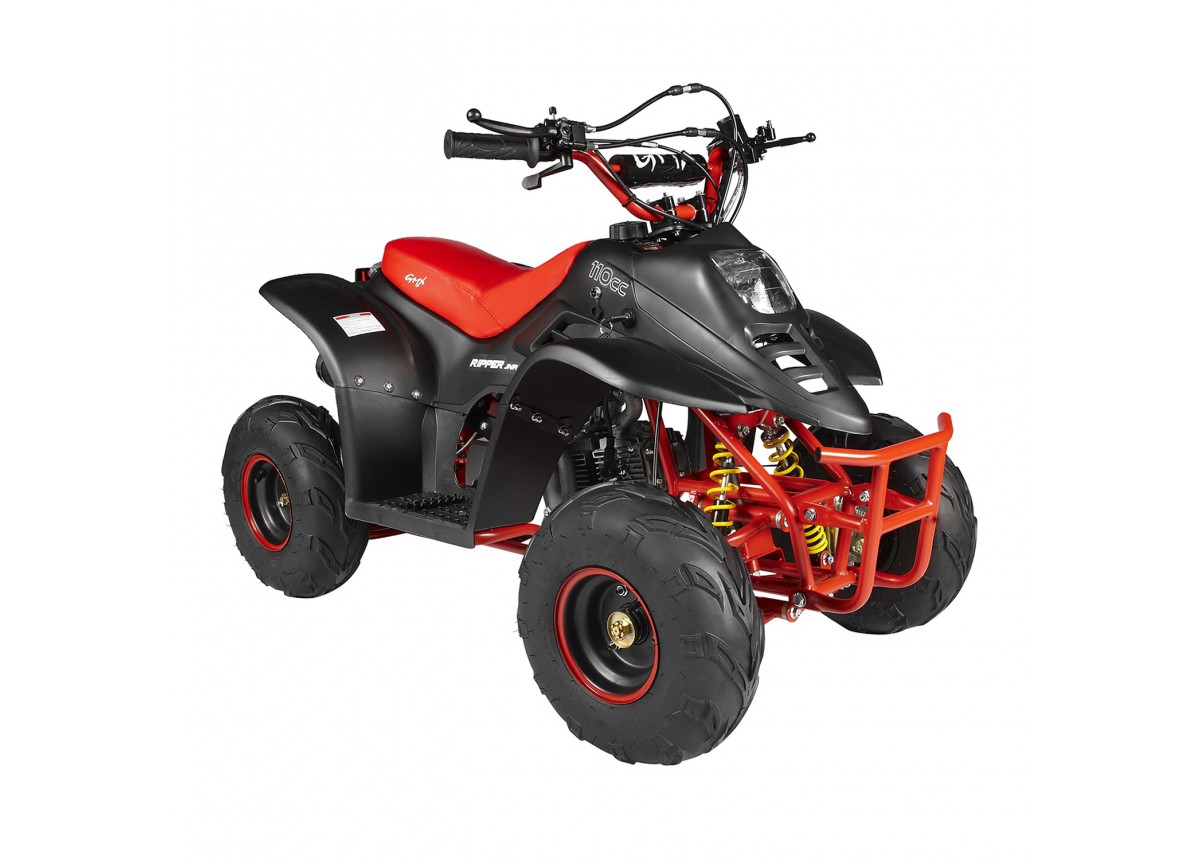

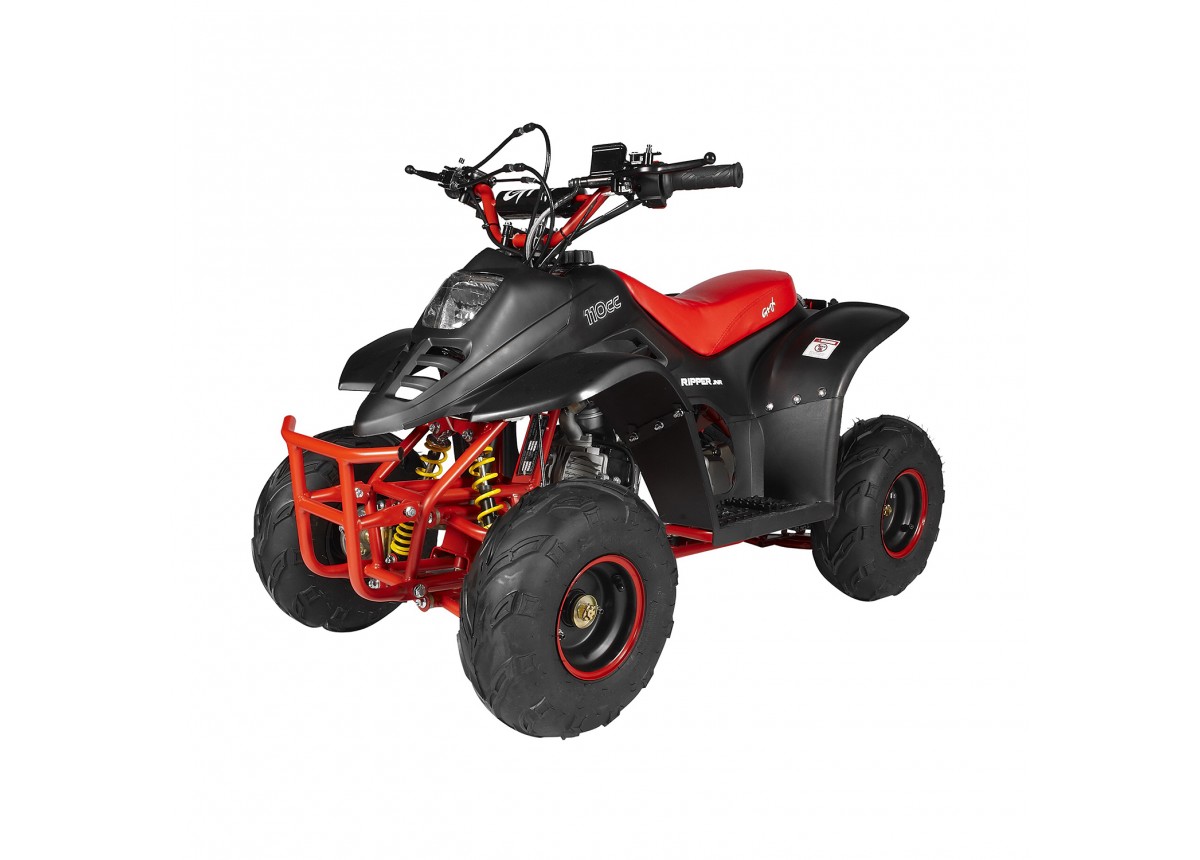

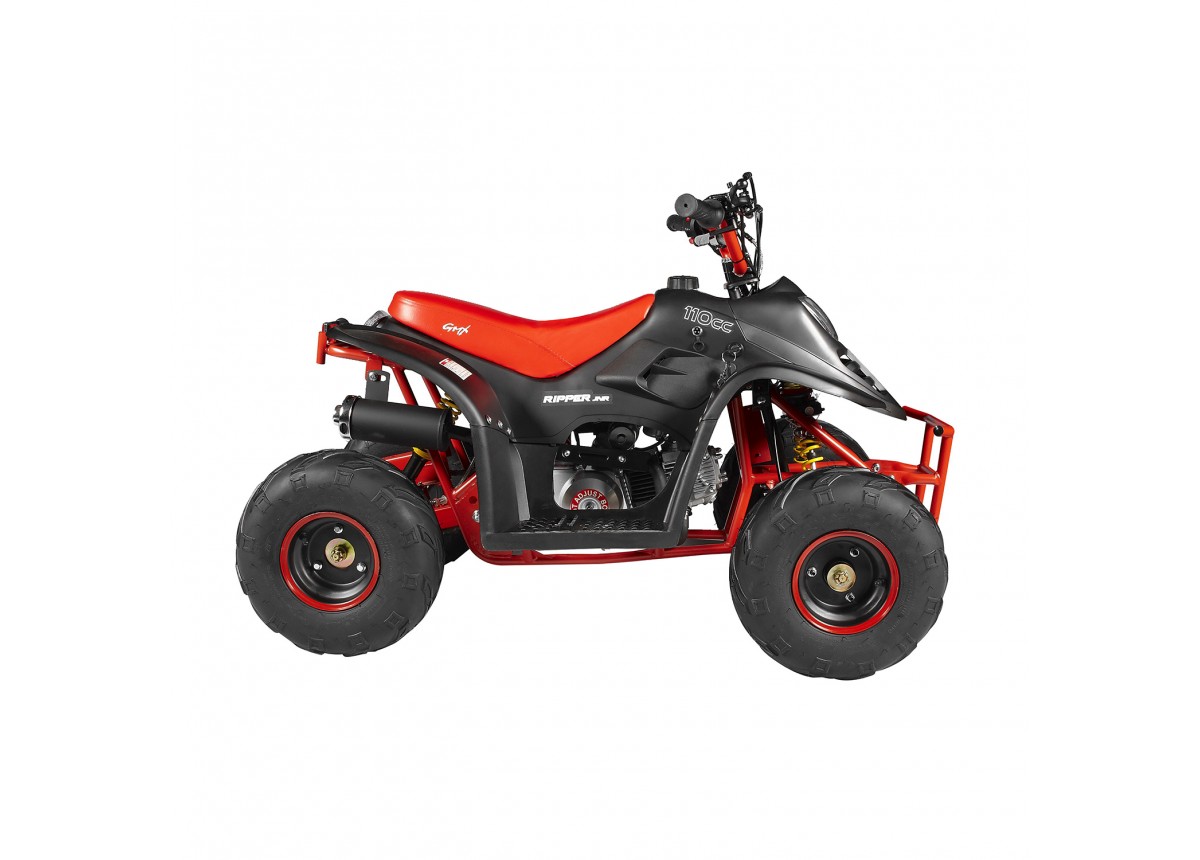

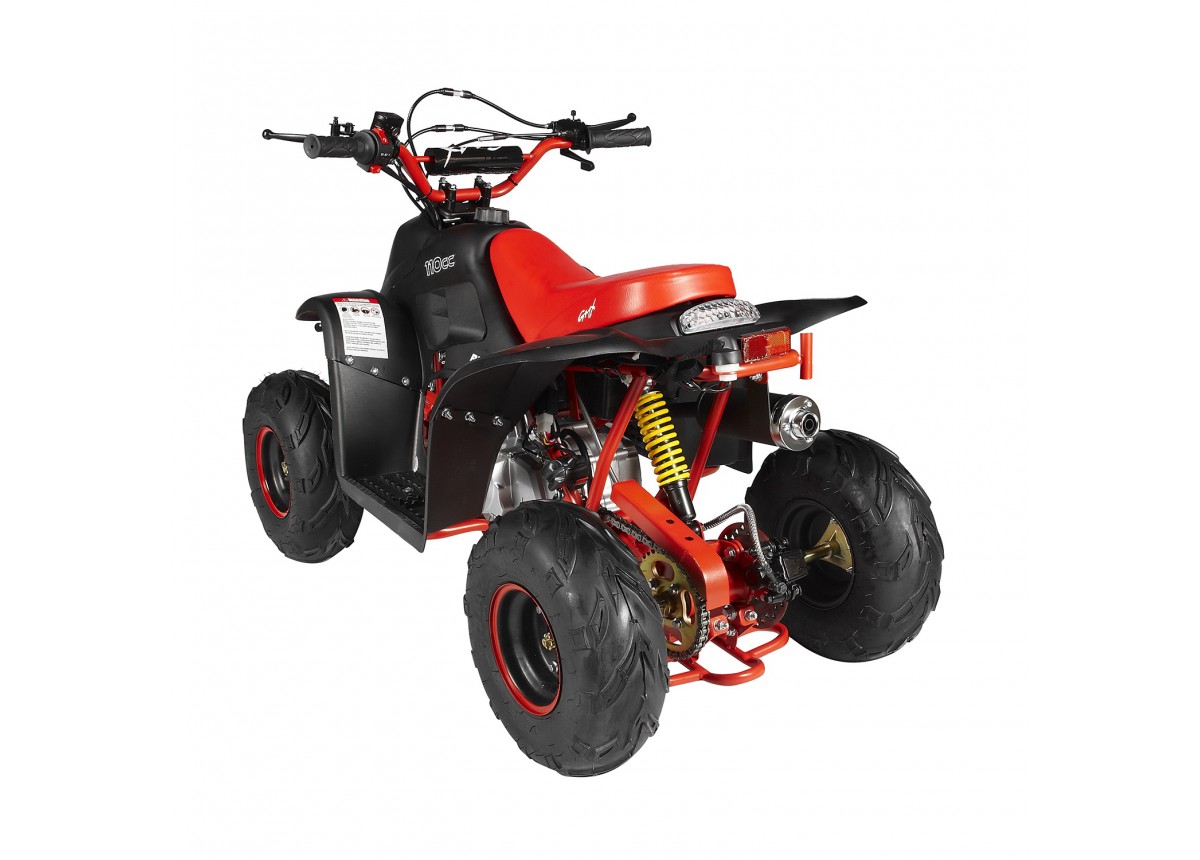

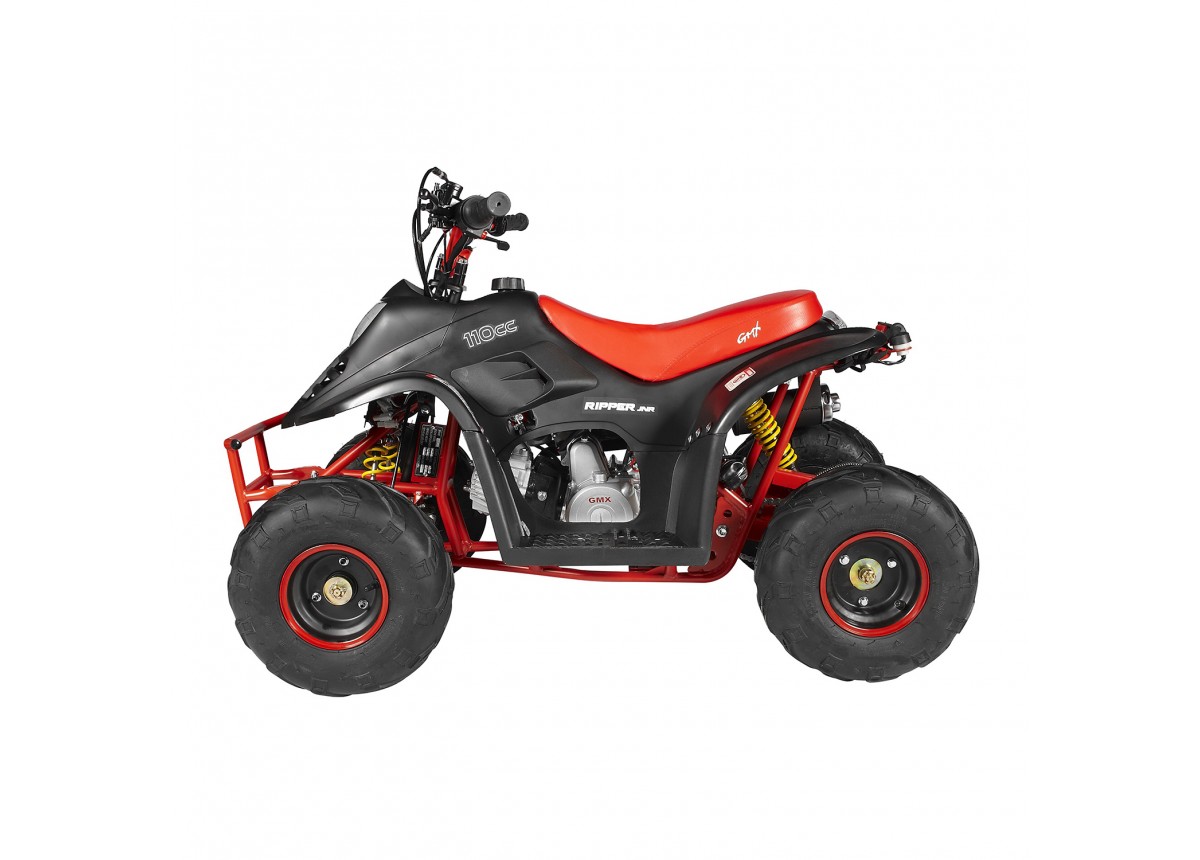

GMX 110cc Ripper-X Junior Kids Quad Bike - Black / Red
- Brand: GMX
- Product Code: GE-YB110X-BLKRED
- Availability: In Stock
| Quantity | SKU | Name | Image | RRP | Price | Stock |
| GE-YB110X-BLKRED | GMX 110cc Ripper-X Junior Kids Quad Bike - Black / Red |
| Call | Call | In Stock | |
| GE-YB110X-BLK | GMX 110cc Ripper-X Junior Kids Quad Bike - Black |
| Call | Call | In Stock | |
| GE-YB110X-BLKBLU | GMX 110cc Ripper-X Junior Kids Quad Bike - Black / Blue |
| Call | Call | Pre-Order | |
| GE-YB110X-BLKGRN | GMX 110cc Ripper-X Junior Kids Quad Bike - Black / Green |
| Call | Call | Pre-Order | |
| GE-YB110X-BLKPIN | GMX 110cc Ripper-X Junior Kids Quad Bike - Black / Pink |
| Call | Call | Pre-Order |
